Type HSA110

        The pump is equipped with in-built chevron gear deceleration device . It has the properties of high transmission efficiency, low noises, stable operation, small size and compact construction. During the running, high-speed shaft can automatically adjust in horizontal direction, which makes it has balanced and reliable transmission, low friction coefficient, high lubrication, low temperature rising at power end, long-time continuous operation, etc. The max.crankshaft thrust force is 57KN.

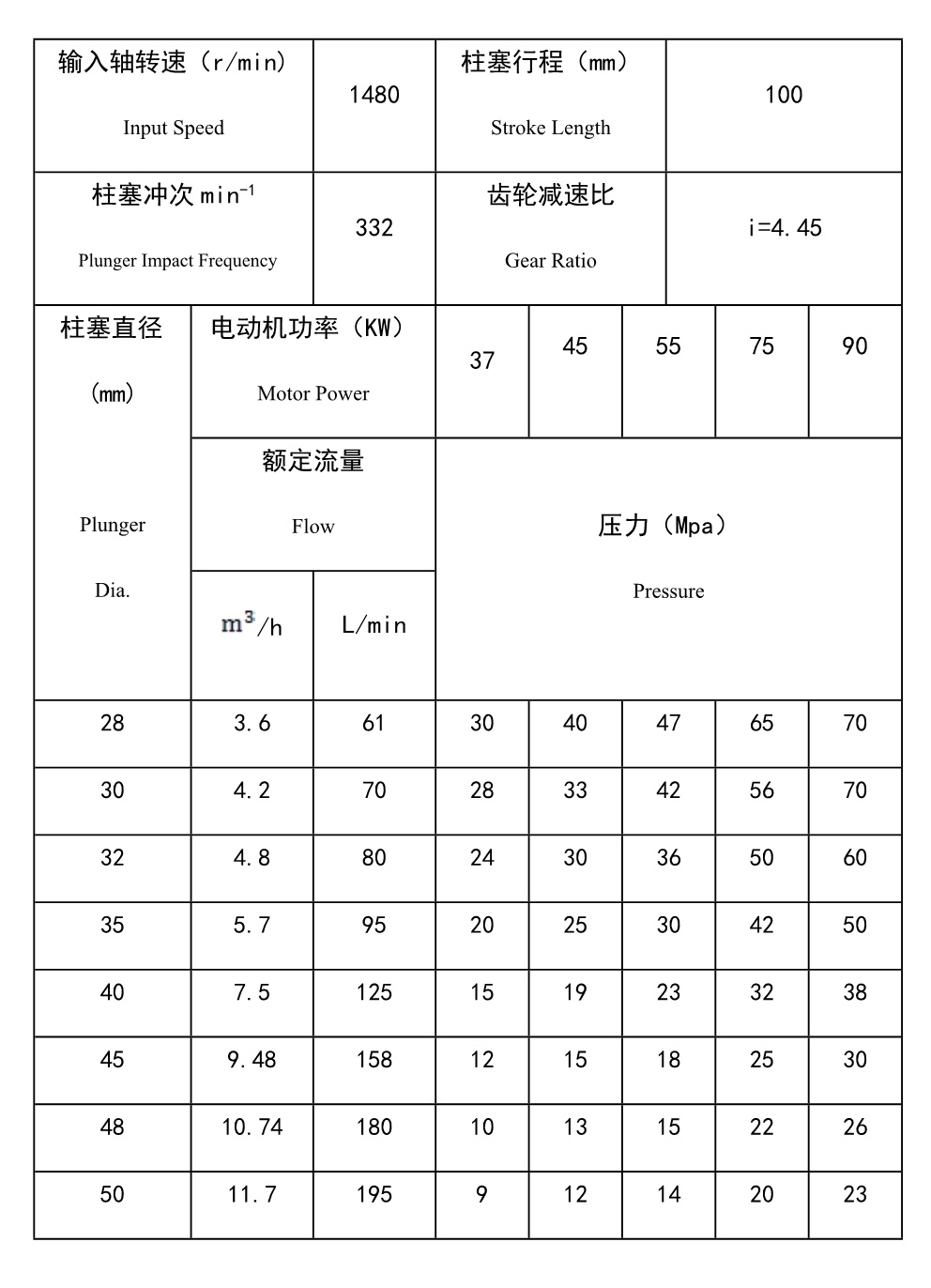

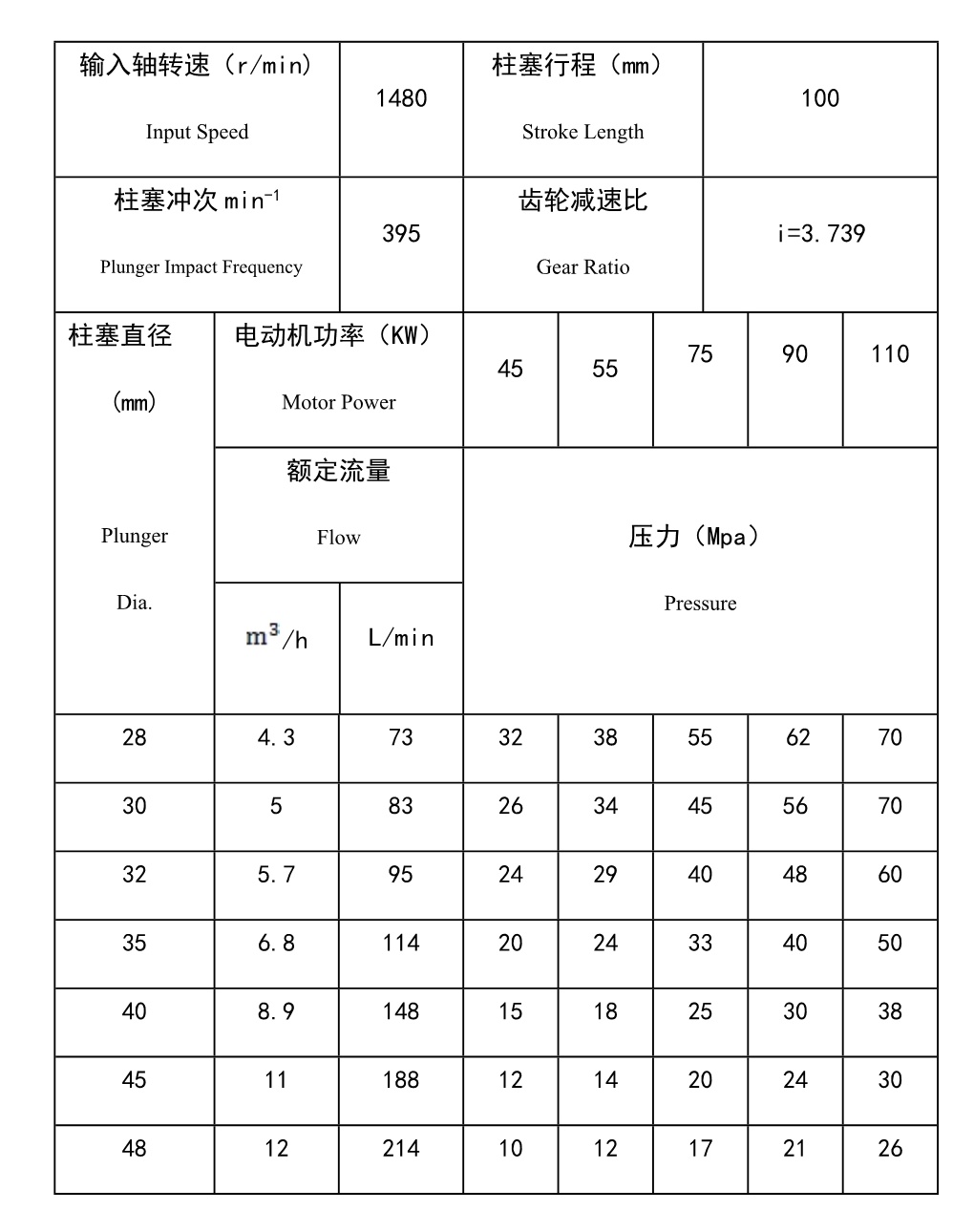

                                                                                                                                            Technical Data

                                           泵重Pump Weight ：600kg   進(jìn)口尺寸Inlet：G2”   出口尺寸Outlet：ZG1”
